Name: Machine Repair Shops UE 3040Z-DQ CNC Router 3 Axis USB Port Mach3 Engraver Engraving Cutting Milling Machine 500W DC Spindle
Brand: RATTM MOTOR, Mach3
SKU: RATTM MOTOR, Mach3
Price: 635.00 USD
Availability: InStock
Rating: 5 (185 reviews)
ISBN: 20622787

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Condition: New

Range of Spindle Speed(r.p.m): 300 - 3000 rpm

Positioning Accuracy (mm): 0.05 mm

No. of Spindles: Single

Working Table Size(mm): 610x485x395mm

Machine Type: CNC Router

Travel (X Axis)(mm): 390 mm

Travel (Y Axis)(mm): 285 mm

Repeatability (X/Y/Z) (mm): 0.05 mm

Spindle Motor Power(kW): DC spindle motor,500W 48V.11000rpm

CNC or Not: CNC

Place of Origin: China

Markenname: RATTM MOTOR

Voltage: 220V-240V

Dimension(L*W*H): 610x485x395mm

Power (kW): 0.5

Weight (KG): 27

Control System Brand: Mach3

Warranty: 2 years

Key Selling Points: Easy to Operate

Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Other

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 2 years

Core Components: Stepper motor, spindle, control board

Rack material: 6061 and 6063 hard aluminium alloy

Z-axis Stroke: 55mm

Max workpiece thickness: <=70mm

Transmission unit: SFU1204 ball screw

Collet: ER11,1/8"(3.175mm)

Interface: Parallel port/USB port

Command code: G code/.nc/.ncc/.tab/.txt

After-sales Service Provided: Online support

Local ServiceÂ Location: United Kingdom, Germany

After Warranty Service: Video technical support, Online support, Spare parts

Showroom Location: None

Marketing Type: Ordinary Product

Zertifizierung: CE

Grundinformation

Place of Origin: China

Markenname: RATTM MOTOR, Mach3

Zertifizierung: CE

Zahlung und Versand AGB

Packaging Details: Carton

Produkt-Beschreibung

Germany Warehouse

Good News:

We have Warehouse in Germany,so we can ship from Germany fast delivery and no VAT to EU Countries!!!

we will ship you order by DHL within one day handling time.

1-2 working days to: Germany
2-4 working days to: Austria,France,Spain and Italy
3-5 working days to: UK
4-5 working days to: Other Europe Countries

Free Custom Duty & Free VAT to Below Europe Countries
Austria	Belgium	Bulgaria	Czech Republic	Croatia	Denmark	Estonia
Finland	France	Germany	Greece	Hungary	Ireland	Italy
Latvia	Lithuania	Luxembourg	Netherlands	Poland	Portugal	Romania
Slovakia	Slovenia	Spain	Sweden	UK	Malta

Packaging & Shipping

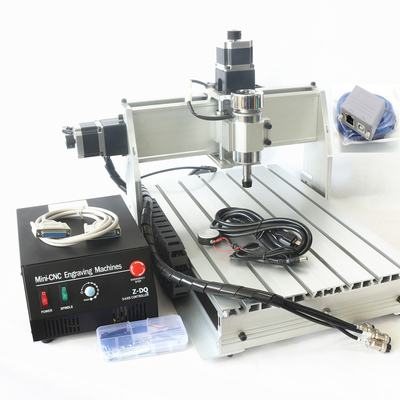

Package included:

· 1 x 3 Axis 3040Z-DQ CNC Router Engraving Milling Machine 220V

· 1 x 3 Axis Control box 220V

· 3 x Axis stepper motors

· 1 x 500W DC Air Cooled Spindle ER11

· 1 x Parallel cable/USB cable

· 1 x Power cable(UK/EU plug)

· 1 x Tool box and tool

· 1 x User manual & mach3 software will send by email

· 1 x RTM200 LPT port to USB Port Adapter Converter

This machine can support LPT port computer,also can support USB port computer via using RTM200 converter

Product Description

3040Z-DQ model: 500W air cooled spindle motor

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

Engrave almost anything on almost any surface

X Y and Z axis carving make more precise and and three-dimensional effect.

Cover plates reducing pollution for the screws and shafts.

More steady and strong equiped with aluminum alloy frame materials.

Reinforced and thickened machine body make transportation absolutely to be safer and longer life time

Technical Parameters

Machine Dimensions: 610×485×395mm

Rack material:6061 and 6063 hard aluminium alloy(the unique and dedicated mold extrusion profiles)

Engraving Area:390×285mm

Z-axis Stroke:55mm,Engraving depth depends on the length of the tool edge

Max workpiece thickness:<=70mm

Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)

Transmission unit:SFU1204 ball screw

Spindle motor:New DC spindle motor,500W 48V.11000rpm,lower noise,high precision,Support Mach3 control

Collet: ER11,1/8”(3.175mm)

Stepping motor and controller: two-phase 57/1.8A ,8 segments driver

Maximum speed: 4000mm/min

Engraving speed: 300-3000mm/min

Repeat positioning Accuracy: 0.05mm

Interface:This machine can support LPT port computer,also can support USB port computer via using RTM200 converter

Software Compatability:Mach3/Emc2,(Type3,Wentai, ArtCAM,Coppercam)

Command code: G code/.nc/.ncc/.tab/.txt

Machine weight: 28kg(including packaging)

Main application: engrave for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working

3040Z-DQ advantage(compare with 3040T+D and 3040T-DJ model) :

1.same size stepper motor but more torque,and the cables use more quality cnc flexible type

2.the power supply use ring transformer,more anti-interference and use more powerful controller

3.New 11000rpm spindle motor,and can turn and off the spindle by mach3 and PWM spindle speed control.more stable long working time

4.3 axis SFU1204 ball screw

5.95% aluminium material produced by mould extrusion forming,more beautiful and quality

How to use

Please read the English user manual to see how to set up the software and how to use this machine.

1.Assembling and locating the CNC machine on steady desk well.

2.Make sure that your computer has a on-board USB port output.

3.Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.

4.Connecting the control box with the CNC machine and you computer.

5.Fllowing our manual or guideline to set uo the software.

6.You can enjoy making you dream with using our CNC machine now.

RTM200

2.1 Product Features:

1) Support USB,replaces the LPT port;

2) Controls upto 6-Axis simulteneously;

3) Works with Mach3 software via plugin;

4) Up to 200Khz;

5) USB connection to the control PC;

6) Fast communication with data buffer for robust and stabile operation.

7) 5 ports input interface for ordinary digital data;

8) 3 ports output interface for ordinary digital data;

9) 1 port 0-10V spindle speed analog output interface(can change to PWM output);

10) Support 4 axis stepper systems,200KHz pulse output for every axis;

11) ARM motion control chip;

12) Compatible with MPG input(Note: this MPG input can only support the digital display MPG from our company, other brand\'s MPG not supported).

FAQ

Q&A
1.Q: Where do you ship from?
A: We ship from the Germany warehouse to you,you can place an order directly,and we will ship your order within one working day.

2.Q: What kind of express delivery and when can I receive the goods?
A:We will ship by Germany DHL to you,the package can be tracked from the DHL website.

1-2 working days to: Germany
2-4 working days to: Austria,France,Spain and Italy
3-5 working days to: UK
4-5 working days to: Other Europe Countries

If you need more quantity, please contact us to confirm the specific delivery date, thank you.

3.Q: How is your quality?
A: Each of our products will be tested before packaging to ensure that there are no problems before being shipped.

4.Q: How to return the goods?
A:
> Defect: We will fully refund or send you a new replacement,please contact and return within 30 days.
> Dissatisfaction: Please contact within 7 days,we will fully refund,after got your returned goods.
> Missing parts/Q'ty: Please contact us immediately,for a new package arranged,or a partial refund issued.

5.Q: What are your warranty terms?
A: Most products have a 2-year warranty.We provide different warranty terms for different products.Please contact us for details.
