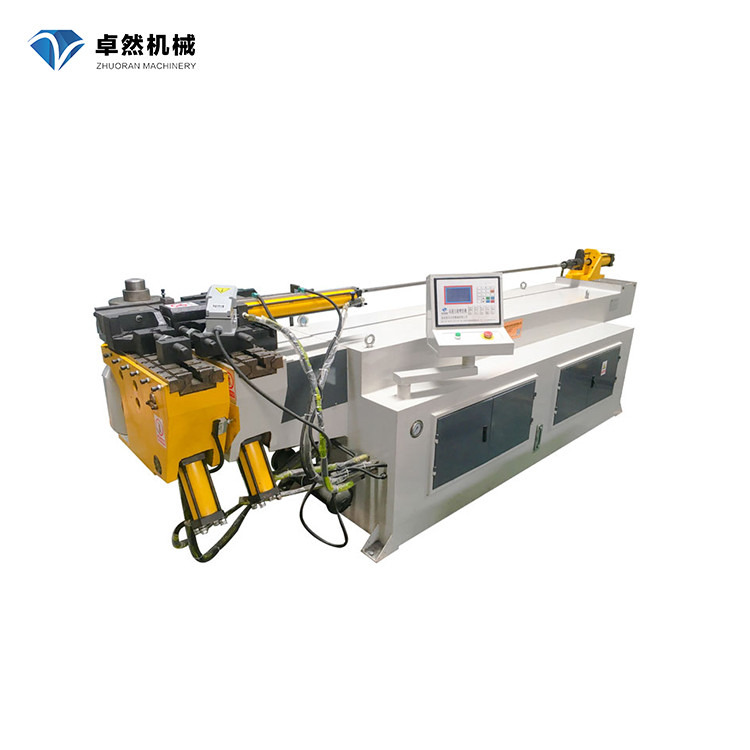

Name: CNC Hydraulic Tube Bender Machinery Repair Shops Tube Bending Machine DW75NC
Brand: ZHUORAN
SKU: ZHUORAN
Price: 1 USD
Availability: InStock
Rating: 5 (133 reviews)
ISBN: 26419664

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Place of Origin: Jiangsu, China

Markenname: ZHUORAN

Condition: New

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: Bearing, Motor

Material / Metal Processed: Aluminum, Stainless Steel

Automation: Semi-automatic

Year: 2020

Weight (KG): 1900 KG

Motor Power (kW): 7.5 kW

Warranty: 1 Year

Key Selling Points: Automatic

Applicable Industries: Machinery Repair Shops

Showroom Location: None

Product name: DW75C

Zertifizierung: ce

After-sales Service Provided: Online support, Video technical support

After Warranty Service: Video technical support, Online support

Local ServiceÂ Location: None

Grundinformation

Place of Origin: Jiangsu, China

Markenname: ZHUORAN

Zertifizierung: ce

Zahlung und Versand AGB

Packaging Details: Wooden case

Supply Ability: 20 Set/Sets per Month

Produkt-Beschreibung

1.High speed single head hydraulic pipe bender, controlled by microcomputer, multi-group program, multi-angle setting, easy to operate.

2.Chinese subtitle display, man-machine dialogue operation, optional manual, half cycle, full cycle operation mode.

3.High performance imported hydraulic valves and electrical

components.

4.Equipped with large capacity cooling system, effectively control the

working temperature.

5.The machine is characterized by convenient operation, stable performance, high working efficiency and high safety coefficient. It is an ideal

equipment for pipe fitting processing industry.

6.Can arbitrarily choose manual, semi-automatic operation mode, mobile foot switch both start, stop two functions.

Main specifications	The unit	DW75NC		Note: 1. The minimum bending radius is based on the pipe diameter 2. The maximum bending radius can be determined according to customer requirements 3. The maximum length of core penetration can be according to customer requirements
Maximum bending diameter ×Wall thickness.	mm	Φ75×6 Carbon steel
Maximum bending radius.	mm	R350
Minimum bending radius.	mm	R≥1.5D
Maximum bending Angle.	Degree	190
Standard core length.	mm	2800
Control system.	Microcomputer control
Number of elbow allowed for pipe fitting	Unit		16
Number of parts that can be stored.	Unit		16×16
Oil motor power.	KW		7.5
Maximum system pressure.	Mpa		12
Hydraulic system control.			Solenoid valve
Tank volume	L		250
Machine dimensions	mm		4300×900×1300
Machine weight	Kg		1900

The name	Manufacturers
Machine case	Produced
The Main electrical appliances	Taiwan also
Hydraulic valve	Taiwan's seven ocean
motor	Wuxi taihu lake
High pressure tubing	Produced
The oil pump	Zhejiang yongling
Oil cylinder	Produced
Travel switch	Changde
Switching power	Taiwan MingWei
Bearings	Harbin bearing
The mold	Produced
